VERTICASA BREAKOUT UNIT - 4 PORT

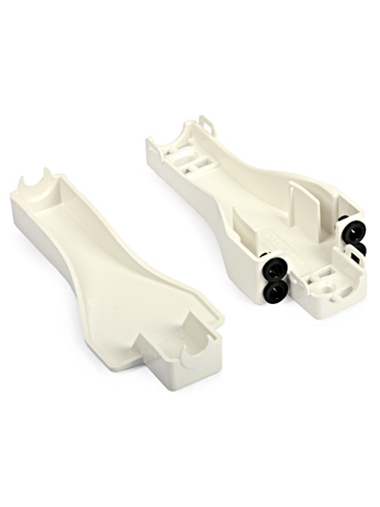

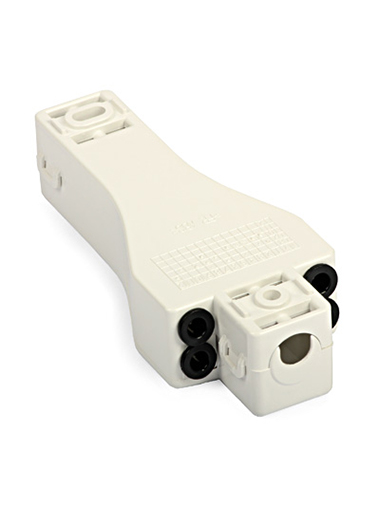

The Verticasa Breakout Unit – 4 Port is typically used in multi dwelling units to breakout and distribute the fibres from an in-line Verticasa cable into drop tubes, for routing to a customer premise. It has the capacity to accommodate Verticasa cables of up to 15mm in diameter. It enables a window to be cut in the cable to access the fibres, which can be spurred of into drop tubes of 5mm in diameter. Up to 4 drop tubes can be accommodated.
Part Number

XCPSC00522

Max number of drop tubes

4

Max diameter of drop tubes

5 mm

Material

FR ABS

  Brochure

Features and Benefits



·         Compact, low profile, wall mounted unit typically used in multi dwelling units.

·         Unit manufactured from fire resistant material to UL94-V0.

·         Supplied with all of the components required to mount the unit to a wall and secure an in-line Verticasa cable.

·         Can accommodate Verticasa cables of up to 15mm in diameter.

·         Can take out 4 drop tubes.

·         Can be supplied to accommodate drop tubes of 5mm in diameter.

·         Standard colour is white RAL9016. Other colours are available on request.

Max number of input cables: 1 in-line
Max diameter of in-line cable (mm): 15
Max number of drop tubes: 4
Max diameter of drop tubes (mm): 5
Tube Retention:  > 70N
Cable Retention:  > 70N
Required space envelope (mm):  (h) 120 x (w) 50 x (d) 27
Operating temperature:  -20oC to + 60oC (5 to 95% RH)
Material:  FR ABS
Colour:  White RAL 9016
Flammability rating:  UL94-V0
