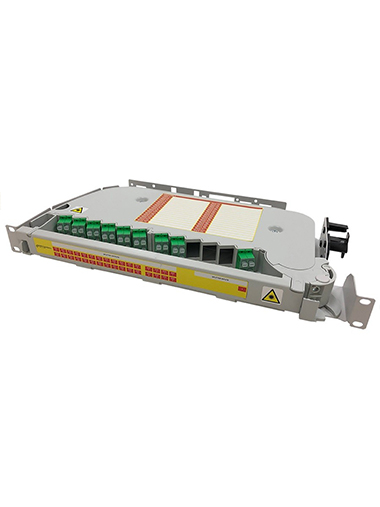

SRS3000 PATCH ONLY SHELF
The SRS3000 Splice and Patch Shelf is a modular unit
available in a variety of configurations for integration in to 19” and ETSI
racks, street side or wall mounted cabinets. The product consists of a metal
chassis, a plastic light weight splice and patch module and a cable anchoring
system. The product has a capacity of up to 48 fibers in a 1U unit for SC and
LC type connectors, and up to 24 fibers for FC, ST and E2000 type connectors.
The panel has in built fiber management to ensure the product is installed
correctly and the same every time by installers.
The shelf is fully compatible with all optical cable types,
with blown fiber tube cables and can be configured to hold optical devices (i.e.,
splitters & WDM’s) on request.
Max terminations
48 for SC or LC connectors
Max terminations
24 for FC, ST and E2000 connectors
Max output of patchcords
48 with 2mm diameter
Max Cable Diameter
14mm
Features and Benefits
·
Modular panel design
enables easy capacity upgrades from 12 to 48 fibers.
·
Very high splice and patch
density of 48 fibers for SC and LC connector types in 1U.
·
High splice and patch
density of 24 fibers for ST, FC and E2000 connector types in 1U.
·
Suitable for installation
into 19”/ ETSI / ANSI racks, wall mounted cabinets and street-side cabinets.
·

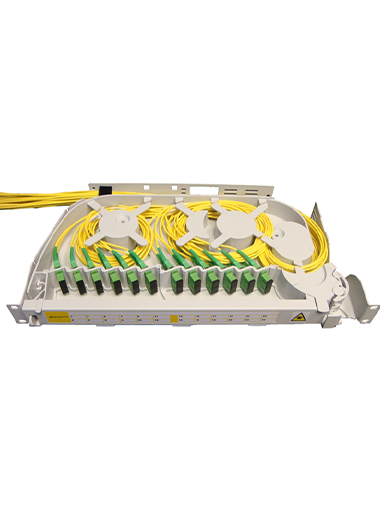

Splice and patch module
pivots outwards for easy fiber access and maintenance.
·
The drop-down front panel
prevents accidental disconnection of patch cords and provides additional space
for patch cord routing during installations.
·
All fibers are positively
bend managed to a 30mm radius
·
Supplied with a large cover
label and front panel labels for easy identification and data recording.
·
Splice and patch bay is
covered with a detachable lid (secured with two screws) to protect the splices
and pigtails once installed.
·
The panel can be used for
optical splitters and other passive devices in alternative configurations.
Please contact Prysmian for further information.
·
Can accommodate most cable
types including blown fiber tube cables
| Max number of terminations | 48 for SC or LC connectors |
| 24 for FC, ST and E2000 connectors | |
| Max number of patch cords out: | 48 with 2mm diameter patch cords |
| Max Cable Diameter: | 14mm |
| Required space envelope (mm): | (w) 480 x (d) 245 x (h) 44.5 |
| Operating temperature: | -20oC to + 60oC (5 to 93% RH) |
| Material:- | |
| Metalwork: | Mild Steel |
| Plastics: | High Impact Polystyrene |
| Finish: | |
| Metalwork: | Painted light grey RAL 7035 |
| Plastics: | Light Grey RAL 7035 |
| Testing:- | |
| Optical: | Tested at 1310nm,1550nm and 1625nm |
| Dry heat: | BS EN 60068-2-2 Test Bb |
| Damp heat: | IEC 60068-2-3: 1969 |
| Change of temperature: | IEC 60068-2-14: 1984 |
| Vibration: | IEC 60068-2-6: 1995 |
| Shock: | IEC 60068-2-27: 1987 |
